36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

تصویر بزرگ : 36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

جزئیات محصول:

محل منبع:	چین
نام تجاری:	China Brand
گواهی:	API 7-1
شماره مدل:	36 اینچ رشته/تقریباً تثبیت کننده بیت

پرداخت:

جزئیات بسته بندی:	مورد چوبی
زمان تحویل:	20-40 روز
شرایط پرداخت:	t/t

مخاطب

36" Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8" Reg. box x 8-5/8 H90 box up

شرح

مادی:

4145H

مدل:

تیغه های جوش داده شده

مواجهه سخت:

HF1000-HF5000

پیوستگی:

NC 50

برجسته کردن:

36 inch spiral welded blade stabilizer,drilling stabilizer with fishing neck,stabilizer with 8-5/8 H90 box

drilling stabilizer with fishing neck

stabilizer with 8-5/8 H90 box

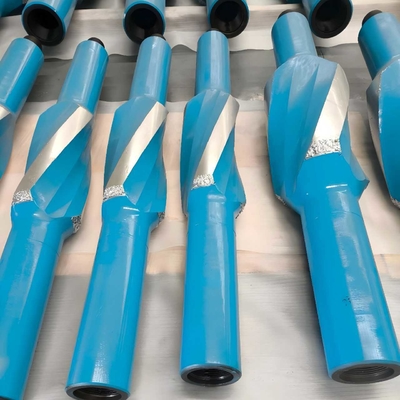

36" Near Bit/String Spiral Welded Blade Stabilizer with 11" fishing neck with 8 5/8"Reg. box x 8-5/8 H90 box up

Product Specifications

Attribute	Value
Material	4145H
Model	Welded Blades
Hard Facing	HF1000-HF5000
Connection	NC 50

Product Description

36" Near Bit/String Spiral Welded Blade Stabilizer featuring an 11" fishing neck with 8 5/8" Reg. box connection and 8-5/8 H90 box up configuration.

Detailed Specifications

Attribute	Value
Stabilizer Type	Near Bit Spiral Welded Blade
OD	36 inches
Fishing Neck	11 inches
Connection	8 5/8" Reg. box x 8-5/8 H90 box up

APPLICATION

We supplies a complete line of downhole drilling stabilizers to increase rate of penetration and control hole deviation problems. All these stabilizers (including spiral blade, straight blade, integral blade, welded blade, sleeve-type, and stainless steel nonmagnetic types) are designed to meet or exceed the strictest quality control and quality assurance standards. All alloy stabilizers are manufactured from AISI 4145H modified heat-treated steel for a wide variety of configurations and hole sizes

FIVE KINDS OF HARD FACING

1. HF1000: Crushed tungsten carbide inserts(TCI) held in a nickel bronze matrix

2. HF2000: Trapezoidal tungsten carbide inserts(TCI) held a sintered carbide nickel bronze matrix

3. HF3000: Embedded with trapezoidal tungsten carbide inserts (TCI) spray welded on the blades

4. HF4000: Tungsten carbide inserts (button type)are pressed tightly in the holes of blades at room temperature

5. HF5000: This oxy-acetylene process pplies tough molten carbide particles of varying sizes in a nickel chrome matrix

TECHNICAL DATASHEET
